8ch HD-SDI DVR supporting PoC/CoC, DoubleReach^™

8ch, 240fps@HD1080p Recording & Playback performance
HDC801F-PD supports PoC/CoC, DoubleReach^™ functions

One of major leading companies in HD-CCTV market which is based on HD-SDI transmission technology, WEBGATE(www.webgateinc.com) launched the most advanced 8ch HD-SDI DVR, HDC801F-PD which can support 240FPS record & playback of Full-HD video.

This product supports 30FPS monitoring per each channel, and provides lossless Full-HD video, 1200TVL high resolution during playback. Besides, it has lighting arrester for input/ output ports, eSATA port for external storage interface, and supports WEBGATE’s CMS, Control Center which connects up to 1,024 DVRs.

Because HDC801F-PD supports PoC(Power over Coax), DVR can supply necessary power to cameras through coaxial cable, and its CoC(Control over Coax) function supports camera’s OSD menu control, zoom/focus control, firmware upgrade, and one-push auto focus through same coaxial cable. It means that system operator can easily control whole camera functions through DVR or CMS like IP camera. Additionally, this DVR has built-in DoubleReach receiver. DoubleReach is the newest HD-SDI transmission technology, so it extends HD-SDI transmission distance by two times(up to 400m) when it compared with conventional HD-SDI. PoC/CoC functions can work together with C1080P series camera models, and DoubleReach function needs dedicated transmitter DR101P-TX for camera interface.

Currently, WEBGATE is in promotion of Full-Frame HD-SDI DVR, HD1600F-PDR, HDC400F-PD as well as HDC801F-PD. With its own PoC/CoC HD-SDI cameras, converters and various new HD-SDI DVR products, WEBGATE is pioneering a new market in which Full-HD video surveillance is much easier to build than conventional analog CCTV system.


How to Use Various HD-CCTV Converters
HD-SDI, HDMI, CVBS conversions

HD-SDI, HDMI, CVBS video can be converted using diverse HD-CCTV converters. Let’s have a close look at the field’s examples.

Practical use of video and audio output of HD-CCTV DVR

The following [Fig. 1] shows the general usage of DVR video output. If the user connects HD-CCTV DVR output to a monitor with HDMI cable, high-definition video can be displayed on the monitor, as well as audio to speaker.

[Fig. 1] DVR’s HDMI video/audio output

If the distance between DVR and monitor is more than 10m, the user can use HDMI2SDI and SDI2HDMI converter. By the configuration of [Fig. 2], HD-CCTV DVR’s video/audio can be transmitted up to 150m.

[Fig. 2] Extension of HDMI transmission distance

Recording of PC, DVD, Set-top box output by using HD-CCTV DVR

PC, DVD and Set-top box’s HDMI output can be recorded in HD-CCTV DVR. HDMI output can be converted to HD-SDI signal by using HDMI2SDI converter. Below [Fig. 3] shows the practical use of HDMI2SDI converter.

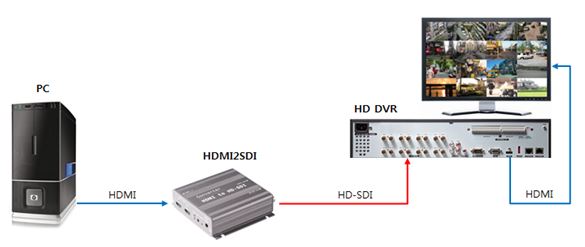

[Fig. 3] Recording PC screen by using HDMI2SDI and HD-CCTV DVR

[Fig. 4] Diverse usage of HDMI2SDI converter

Recording analog videos to HD-CCTV DVR

SD2HD can convert up to 6 CVBS signals to one HD-SDI signal. Like [Fig. 5], up to 6 analog video input signals can be converted into a HD-SDI signal by using SD2HD converter.

Also, SD2HD supports 1/4/6 split screen allowing even one analog camera input.

[Fig. 5] Connection between analog camera and HD-CCTV DVR using SD2HD converter

How to display HD-SDI signal on analog monitor

HD2SD has two functions. One is HD-SDI repeater and the other is to convert HD-SDI signal to CVBS. The user can connect HD-SDI signal to HD-CCTV DVR and can use analog(SD) video output at the same time.

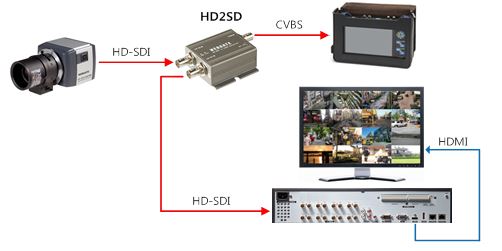

[Fig. 6] HD-SDI signal converting to CVBS
