WEBGATE acquired the World’s First HDcctv certificate for PoC HD-SDI DVR
The world’s first HD-SDI DVR certification which supports One cable Solution
Certifications for 3 DVR models : 16ch HD1600F-PDR, 8ch HDC801F-PD, 4ch HDC400F-PD

Daemyung Enterprise, WEBGATE division(www.webgateinc.com), the leading company in HD-CCTV field based on HD-SDI transmission technology, acquired the world’s first HDcctv certification for 3 HD-SDI DVR models supporting PoC(Power over Coax) and CoC(Control over Coax) functions. The world’s best performance DVRs, 16ch HD1600F-PDR, 8ch HDC801F-PD and 4ch HDC400F-PD not only support full-frame monitoring and recording, but also support full-frame playback of HD1080p video without frame loss even at split-screen.

Above all, these 3 PoC DVR models supply camera power through coaxial cable via PoC(Power over Coax) function and transmit camera control signal through same coaxial cable via CoC(Control over Coax) function. WEBGATE already acquired HDcctv certifications for 12 PoC cameras on October in 2013, and acquiring the world’s first certifications for 3 PoC DVR models are truly a defining moment for HD-SDI industry. Because it directs the future of “One Cable Solution” using HD-SDI products.

Since receiving the world’s first HDcctv camera certificate in 2010, WEBGATE has acquired total of 42 certificates for DVR, camera and converter products, and won HDcctv compliance leadership awards for 3 consecutive years from 2011 to 2013. And this proves that WEBGATE is the leading manufacturer driving the HD-CCTV market in the world.

WEBGATE’s One Cable Solution of PoC/CoC functions and full-frame recording/playback performance enhanced already powerful HD-CCTV DVR, camera, converter and added even more powerful features and capabilities, providing the easiest way to build the high-definition video surveillance system.

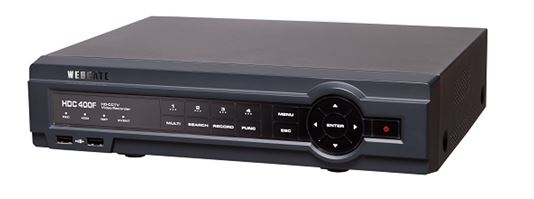

Release of Compact size 4ch HD-SDI DVR
Supporting Full-frame recording & Playback

WEBGATE (www.webgateinc.com), the leading company of HD-CCTV camera and DVR products based on HD-SDI transmission technology, launched the world’s best performance 4 channel HD-SDI DVR. The HDC400F can record Full-HD 1080p video up to 120 frames per second and support full-frame playback without frame loss.

This product is A4-sized compact DVR supporting 30fps monitoring per channel with excellent 1,200TVL resolution, and it supports natural full-frame video even at quad split playback. Also it supports 64x fast playback, step-by-step playback both forward/reverse direction. It is the world’s best performance DVR which provides intuitive and simple user-interface for monitoring, playback and settings.

It provides dual-encoding(H.264, JPEG) for recording and multi-streams for network. It also shows excellent video compression performance by using the latest H.264 High-profile codec. Compared to the existing DVR models, it provides almost twice improved compression performance in regard to the video quality of less than 4Mbps bitrates.

Powerful lightning arrester circuits are adopted to HD-SDI, RS485 and DIO ports, and WEBGATE’s DVR-dedicated VFS(Video File System) and IPFR(Intelligent Power Failure Recovery) function improved the reliability on product itself and recorded video data.

It has built-in web server supporting IE/Chrome/Firefox/Safari, and it provides iOS/Android phone monitoring through mobile App. Also, Control Center(CMS) is provided as a bundle program to manage up to 1,024 DVRs.

WEBGATE has released many camera and DVR models recently which can support PoC(Power over Coax) and CoC(Control over Coax) functions to provide One Cable Solution of HD-CCTV products. And also, WEBGATE is responding to the diverse needs from the video surveillance market, by releasing of high performance basic DVR models such as HDC400F.


WinRDS: A method to distribute video stream
without DVR performance degradation

Generally DVR restricts the number of concurrent user’s connection to prevent the degradation of DVR performance. In case of WEBGATE’s HD DVR series, DVR restricts the concurrent monitoring access to 10 and playback access to 2.

WinRDS(Windows Re-Distribution Server) is a server program where input video streams from DVRs are distributed to tens and hundreds of network streams. Because a DVR only provides video to one WinRDS server, DVR does not show any performance degradation even if dozens of clients are monitoring simultaneously.

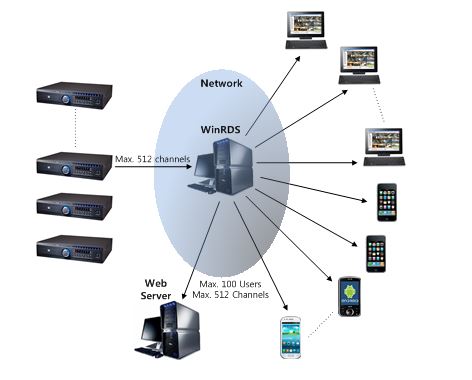

Video Distribution using WinRDS

There are some differences according to resolutions, however, WinRDS allows max. 512 video streaming inputs(channels) from DVR, and can provide max. 512 stable video streams to Control Center(CMS), WebViewer(Mobile monitoring App) and web browser.

In case of large-scale video surveillance system, the administrator might have to assign several users’ authority to individual DVR differently. This will be difficult and time consuming for administrator to assign each DVR with different authorities per user.

WinRDS allows max. 100 user registration, and the administrator can easily allocate individual user’s authority. WinRDS helps the administrator to easily assign/modify user’s authority through simple user interface.

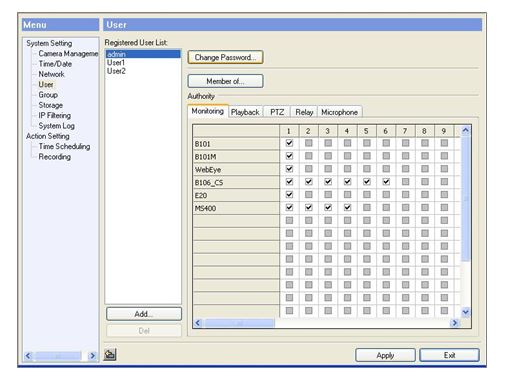

WinRDS Provides easy method to Assign or Modify User's Authority of DVRs.
